IBM i Integration

CoderFlow enables AI agents to work directly with enterprise IBM i systems. Agents can compile RPG, COBOL, and CL programs, interact with 5250 terminal sessions, query DB2 databases, and test Rich Display applications—all autonomously.

What Agents Can Do​

With IBM i integration, agents can:

  • Compile programs: Build RPG, COBOL, CL, DDS display files, and other IBM i objects using native compilers
  • Query databases: Execute SQL against DB2 to understand data structures and verify results
  • Test applications: Operate 5250 terminal sessions and Rich Display interfaces to verify functionality
  • Modernize code: Convert legacy RPG to modern formats, verified by Profound Automated Testing
  • Sync source members: After approval, sync changed files directly to an IBM i library as source members (see Sync to IBM i)

This enables the same AI-assisted development workflows available for modern platforms—but for IBM i applications that most AI tools cannot handle.

Database Access (RAS)​

Remote Access Server (RAS) provides high-performance database connectivity between containers and IBM i systems. Agents use RAS to:

  • Execute SQL queries against DB2 databases
  • Discover table schemas and data structures
  • Verify that changes produce expected results

RAS offers better performance than traditional JDBC/ODBC connections over network distances. Agents interact with it automatically through the SQL tool—no manual connection management required.

Compiling with codermake​

codermake is the build system agents use to compile IBM i programs. It runs in containers and uses SSH to invoke native IBM i compilers on remote systems.

When an agent modifies source code, it runs codermake to compile. The tool handles RPG, COBOL, CL, display files, and database files—with automatic dependency tracking to rebuild only what's changed.

Each task gets its own IBM i library, so agents can work on the same codebase simultaneously without interfering with each other. Experimental changes stay isolated from the shared environment.

Interactive Testing​

Agents can operate interactive applications for testing:

5250 Terminal Sessions

  • Connect to IBM i applications via 5250
  • Navigate screens, enter data, press function keys
  • Verify application behavior matches expectations

Rich Display Sessions

  • Test modern Profound UI interfaces in a browser context
  • Interact with Rich Display File applications
  • Capture screen states for verification

Interactive sessions let agents test applications the way users would. All sessions are automatically recorded and appear in the task's visualizations.

Import Tools​

Two tools help bootstrap a repository from an existing IBM i application:

Both tools are launched from the actions menu on the task launcher when the current environment has an import-enabled repository and your role grants the IBM i Import permission.

Configuration​

IBM i integration requires administrator setup:

  • RAS service running on the IBM i system (for SQL access)
  • SSH access (for Build, SSH, Sync, and htdocs deploy)
  • Profound UI for interactive session testing (optional but recommended)

See IBM i Connections for the IBM i-side prerequisites and per-feature requirements, and Environments in the Administration section for the field-by-field reference of the connection form.

Operating IBM i Tasks​

These pages cover the operational details once IBM i is configured:

  • IBM i Connections — what each feature requires from the IBM i system, user profile authority, and Profound UI configuration.
  • Task Libraries — how per-task build libraries are named, when they are created and cleaned up, and how to remove orphans manually.

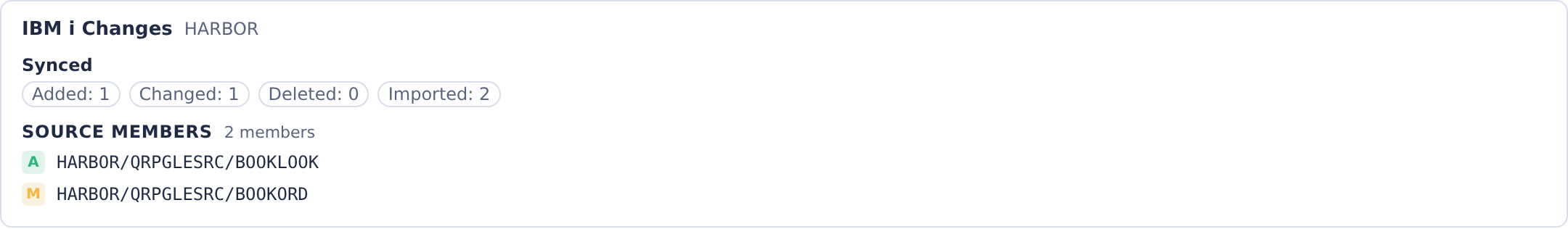

  • Sync to IBM i — the full Sync flow: file selection, member naming rules, @MBRTEXT preservation, Rich Display JSON conversion, and Profound UI htdocs deploy.
